Dimatix Starfire SG1024 LA2Ci 12Pl Printhead 2 Color for Tecwin Flora Witcolor

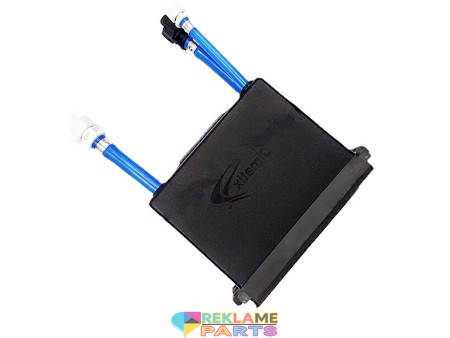

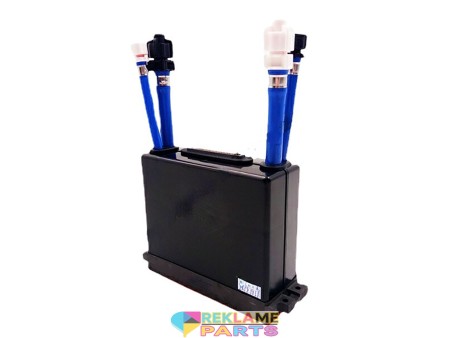

Spectra Dimatix StarFire SG1024/LA2Ci Printhead

Dimatix StarFire SG1024LA2Ci 12plPrinthead

Dimatix Starfire SG1024 LA2Ci Printhead 2 Color for Tecwin Flora Witcolor

The StarFire™ SG1024/LA2Ci is a compact, self-contained unit compatible with solvent, UV-curable and aqueous ink formulations.

SKU: SG1024/LA2CI

Manufacturer part number: SG1024/LA2CI

Manufacturer: Dimatix

HTS Code: [EU] 84439990

This printhead carries a manufacturer warranty.

Country of origin : Japan

The StarFire™ SG1024/LA2Ci is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink re-circulation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.

Each SG1024/LA printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired. We recommend to change the head cables when installing a new printhead.

The StarFire™ SG1024/LA2CI and SG1024/LA2C are the same printheads.

Features :

- Number of addressable Jets per module: 1024

- Print width: 64.96mm (2.55")

- Native resolution: 200 dpi percolor and interlaced for a 400 dpi swatch

- Native drop size: 80pl

- Largest drop size: 200pl

- VersaDrop™ max productivity: 1500ng-kHz with drop sizes between 80 & 200ng

- Fire frequency: Up to 20 kHz

- Inkjet operating temperature range: Up to 50°C (122°F)

- Nozzle Plate technology: Metal

- Printhead heat type: Integrated heater, thermal transfer

- OEM accessible non-volatile memory: 64 byte rewriteable

- Integral temperature sensor: Integrated

- Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)

- Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
