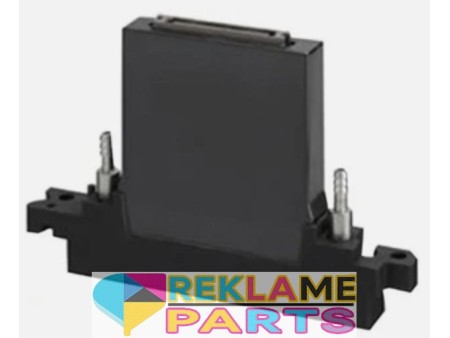

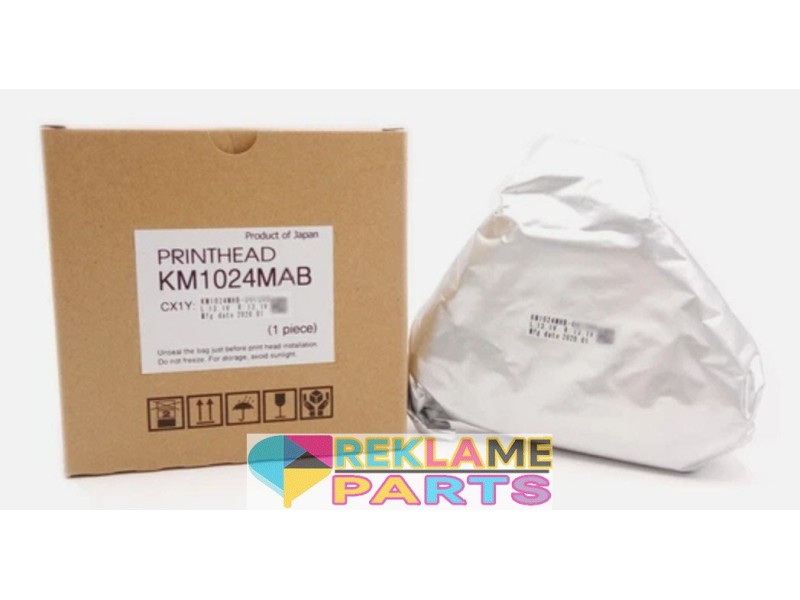

Original Konica Minolta KM1024 MAB Printhead

Original Konica Minolta KM1024 MAB Printhead


The Konica Minolta KM1024 MAB printhead is a solvent-compatible industrial inkjet head with 1024 nozzles, a 72 mm print width, and a 14 pL drop size. It is designed for high-resolution, high-productivity printing in signage and industrial applications.


Specifications:
SKU: PPHKM1024 MAB
Manufacturer: Konica Minolta
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan
Model    KM1024 MAB
Technology    Piezoelectric, Drop-on-Demand (shared wall, 3-cycle)
Number of Nozzles    1024 (2 × 512 rows)
Print Width    72 mm
Native Resolution    360 dpi (180 dpi × 2 lines)
Drop Size    14 pL
Firing Frequency    Up to 12.8 kHz
Ink Compatibility    Solvent-based inks
Grey Scale    8 levels supported
Dimensions    W131 mm × D18 mm × H89 mm
Weight    ~150 g
Internal Heater    Not included
Energy Efficiency    Uses new piezo actuator, ~50% lower power consumption than KM512 series
Applications    Large-format graphics, outdoor signage, industrial printing systems
We recommend to change the head cables when installing a new printhead.


High Productivity: Double the nozzle count compared to KM512, enabling wider coverage and faster throughput.
Energy Efficient: Reduced power consumption thanks to advanced piezo actuator design.
Sharp Detail: 14 pL drop size ensures fine resolution and smooth gradients.
Durability: Built for continuous operation in industrial environments
