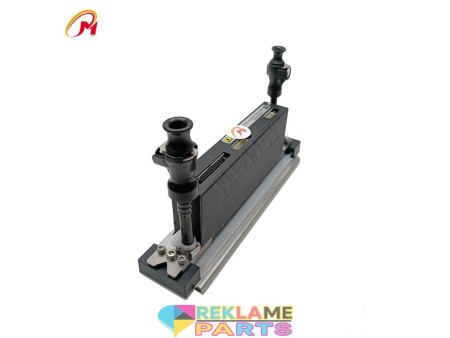

Kyocera KJ4A-AL06NT0-DL1V Printhead
The Kyocera KJ4A-AL06NT0-DL1V is a high-performance industrial inkjet printhead designed for UV-curable and other high-viscosity inks. It delivers 600 dpi resolution, supports a maximum drive frequency of 20 kHz, and is widely used in label, packaging, and sign graphics printing.
Specifications:
Model Kyocera KJ4A-AL06NT0-DL1V
Brand: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Kyocera KJ4A-AL06NT0-DL1V Printhead
The Kyocera KJ4A-AL06NT0-DL1V is a high-performance industrial inkjet printhead designed for UV-curable and other high-viscosity inks. It delivers 600 dpi resolution, supports a maximum drive frequency of 20 kHz, and is widely used in label, packaging, and sign graphics printing.
Specifications:
Model Kyocera KJ4A-AL06NT0-DL1V
Brand: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Type: Industrial inkjet printhead
Resolution 600 dpi (single-color)
Maximum Drive Frequency 20 kHz
Ink Compatibility UV-curable inks, high-viscosity inks
Applications Label printing, packaging, sign graphics, offset surprint
Number of Nozzles 2,656 nozzles
Effective Print Width 108.25 mm
Drop Volume ~5–7 picoliters (depending on ink type)
Printhead Dimensions Approx. 200 × 55.5 × 79.15 mm
Recommended Ink Viscosity Adjustable via internal heater (typically 5–15 mPa·s)
Recirculation Yes (ensures stable ink flow and reduces clogging)
Manufacturer Part NumberKJ4A-AL06NT0-DL1V
Country of Origin: Japan
Condition: Brand new (original)
