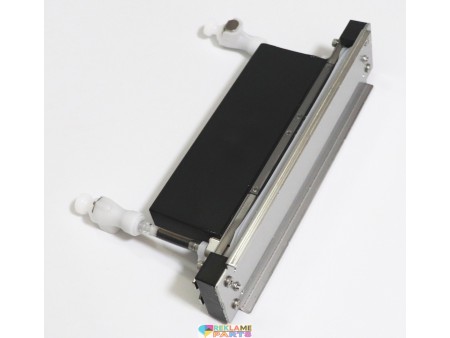

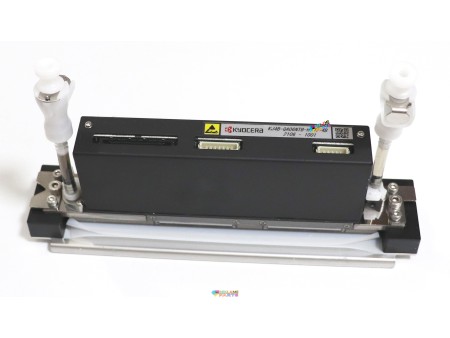

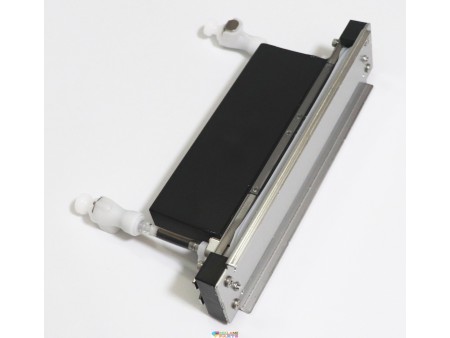

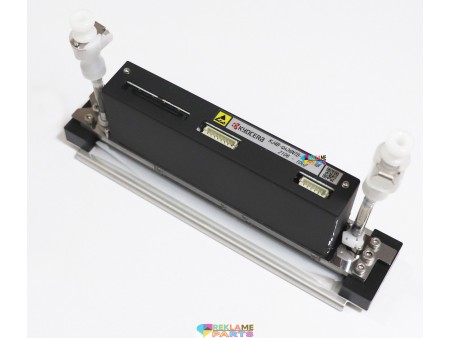

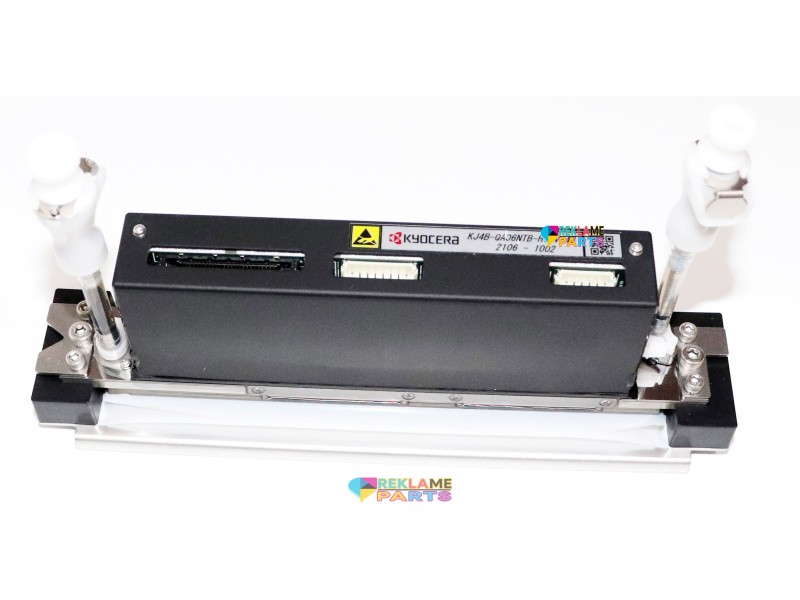

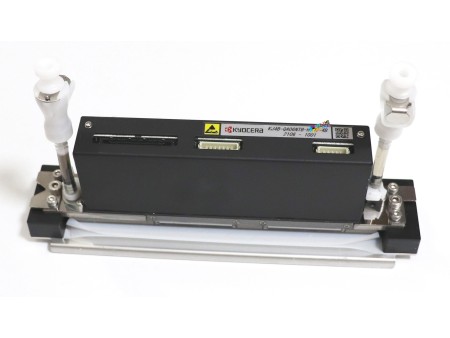

Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
zoom_in
  • On sale!
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head
  • Kyocera KJ4B-QA06NTB-TX10V-4B Print Head

Kyocera KJ4B-QA06NTB-TX10V-4B Print Head

$1,985.00

Kyocera KJ4B-QA06NTB-TX10V-4B Print Head

The Kyocera KJ4B-QA06NTB-TX10V-4B is a high-speed, water-based inkjet printhead designed for industrial printing applications. It delivers 600 dpi resolution, supports a maximum drive frequency of 30 kHz, and uses 2,656 nozzles across a 108.25 mm print width.
Kyocera KJ4B-QA06NTB-TX10V-4B is a robust, high-resolution printhead optimized for fast, water-based printing with fine drop control. It’s best suited for industrial-scale applications where speed and precision are critical

Quantity

Kyocera KJ4B-QA06NTB-TX10V-4B Print Head

The Kyocera KJ4B-QA06NTB-TX10V-4B is a high-speed, water-based inkjet printhead designed for industrial printing applications. It delivers 600 dpi resolution, supports a maximum drive frequency of 30 kHz, and uses 2,656 nozzles across a 108.25 mm print width.
Kyocera KJ4B-QA06NTB-TX10V-4B is a robust, high-resolution printhead optimized for fast, water-based printing with fine drop control. It’s best suited for industrial-scale applications where speed and precision are critical.


Specifications :

Model: KJ4B-QA06NTB-TX10V-4B
Manufacturer: Kyocera Corporation (Japan)
Ink Type: Aqueous (water-based)
Resolution: 600 dpi (single color)
Maximum Drive Frequency: 30 kHz
Print Speed: Up to 75 m/min
Drop Volume: ~5 picoliters (pL)
Nozzle Count: 2,656 nozzles
Effective Print Width: 108.25 mm
Nozzle Pitch: 0.042 mm
Drop Rate: ~30,000 drops per second per nozzle
Resolution    600 dpi
Drive Frequency    30 kHz
Print Speed    75 m/min
Drop Volume    5 pL
Nozzles    2,656
Effective Print Width    108.25 mm
Country of Origin    Japan
Dimensions: 200 × 25 × 59.3 mm
Weight: 420 g (dry weight)

KJ4B-QA06NTB-TX10V-4B
12 Items

Specific References

MPN
KJ4B-QA06NTB-TX10V-4B
