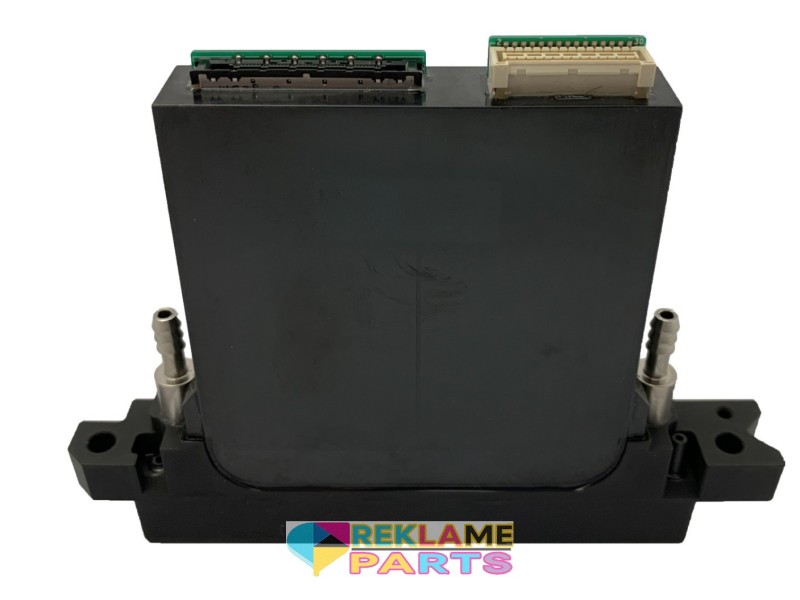

Original Konica Minolta KM1024a SAE-Q Printhead

Original Konica Minolta KM1024a SAE-Q Printhead

The Konica Minolta KM1024a SAE-Q Printhead has 1024nozzles. It is compatible with water-based inks

High Productivity Analogue Waveform : Adopting analogue waveform that can achieve high productivity and print accuracy in multiple drops. High flexibility to optimize the waveform for individual inks.

Compact Print Head : Light weight (150g) and compact (17.6mm wide) print head enables compact printer design. Mechanical compatibility with KM1024i series print heads.

Robust Nozzle Plate : New nozzle plate material with even higher scratch resistance around 100 times* better than the previous version. *Based on internal measurement

High Drop Accuracy : Introduced a new production method to optimize the drop velocity for individual nozzles. Analogue waveform also enables improved drop accuracy


Specifications:

• SKU: PPHKM197227
• HTS Code: [EU] 84439990
• Manufacturer part number: KM1024a SAE-Q
• Manufacturer: Konica Minolta
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
• Drive Mode: Independent
• # of nozzle: 1024
• Print Width (mm): 72
• Head dimensions : W: 131.2mm x D: 17.6mm x H: 97mm
• Regular jetting frequency (kHz)  40kHz (Binary) :29kHz (4dpd)
• Drop volume (pL): 6pL (Binary) 18pL (4dpd)
• Jetting temperature: RT~55℃
• Internal heater: Available
• Ink Type: Water-based inks.
• Ink Viscosity (mPa・s): 7-10
• Waveform: Analogue
• Weight: 150g
• Grey scale level: 8 level

We recommend to change the head cables when installing a new printhead.
