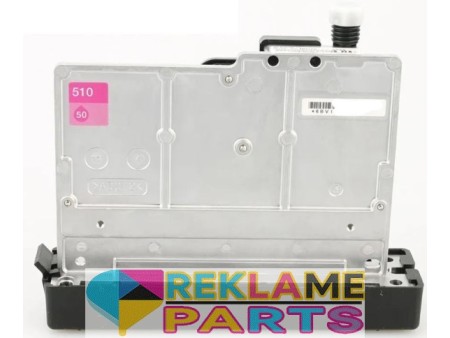

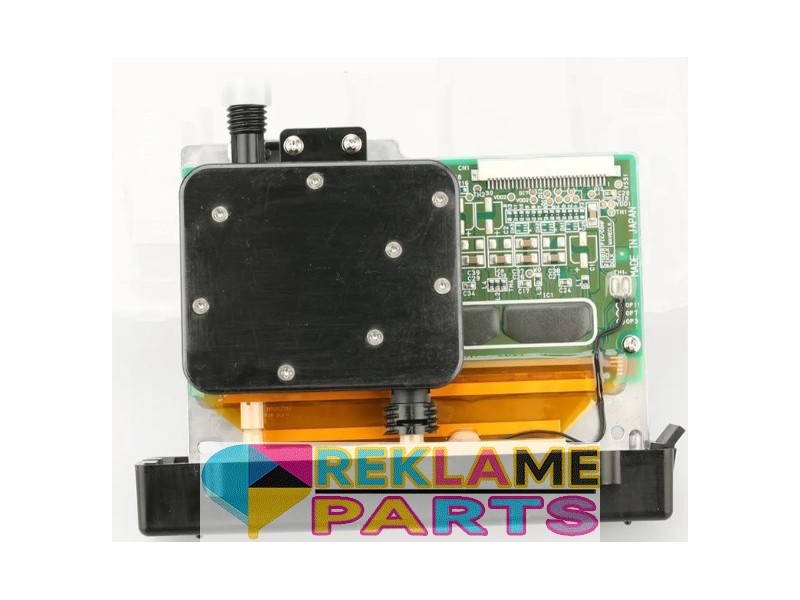

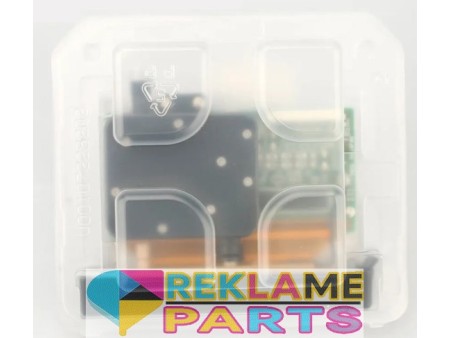

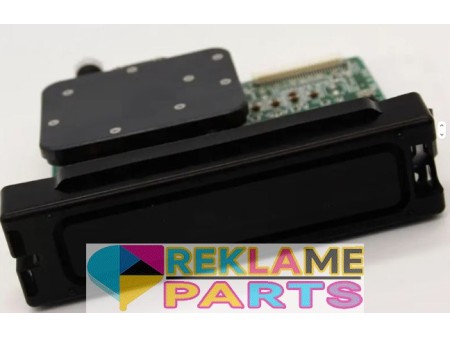

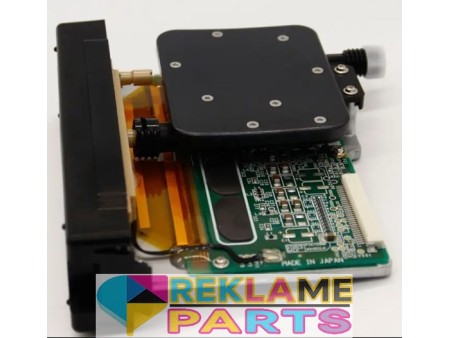

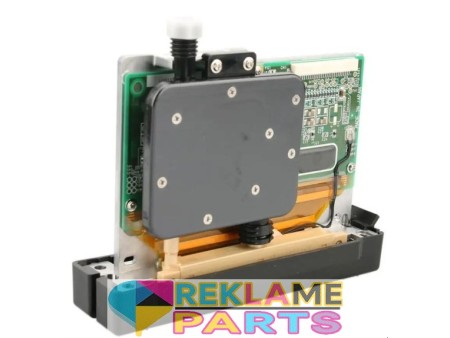

Seiko SPT510 50PL Printhead Original – Solvent Ink Type

Seiko SPT510 50PL Printhead Original – Solvent Ink Type
Original Seiko SPT-510 / 50PL Printhead
Original New Seiko SPT510 50pl Print Head


Availability: In stock
Description: Brand New
SKU: PPHSE18907
Manufacturer: Oki
HTS Code: [EU] 84439990
Country of origin : Japan
This printhead carries a manufacturer warranty.
Package：Original Manufacture Package

The Seiko SPT510 drop on demand piezo printhead is compatible with a wide-range of grand-format digital printers. Fully equipped with 510 active nozzles for high-resolution (720dpi) and high-speed (50 pl) printing and steel-plate protection for a longer life, this durable printhead lasts 4-5 times longer than many common128 printheads.


Specifications

☑️ Technology: Drop on demand Piezo Electric
☑️ Active Nozzles: 510
☑️ Native Resolution: 180 dpi
☑️ Max Resolution: 720 dpi
☑️ Drop Volume: 50 pl
☑️ Firing Frequency: 6-8 Khz


Printer compatibility :
✅ Acetek TC-3208GD
✅ CrystalJet CJ-4000
✅ CrystalJet CJ-6000
✅ Icontek TW-3308MS
✅ Infiniti Challenger FY-3208BQ
✅ Infiniti Challenger FY-3208N
✅ Infiniti Challenger FY-3278N
✅ Infiniti Challenger FY-3278Q
✅ Phaeton UD-3278K
✅ Phaeton UD-3278Q
✅ SID Xpress 320
✅ Xenons XS310
✅ Xutu XTS 1000
✅ Xutu XTS 2000

Model           | Drop Size | Nozzle No. | Firing Frequency | Nozzle Width | Ink Type
-------------------------------------------------------------------------------------
SPT51035PL      | 35PL      | 510        | 12.8KHZ          | 71.8mm       | solvent ink
SPT510-50PL     | 50PL      | 510        | 6KHZ             | 71.8mm       | solvent ink
SPT1020-35PL    | 35PL      | 1020       | 8.29KHZ          | 71.8mm       | solvent ink
SPT508GS-12PL   | 12PL      | 508        | 11/17.4KHZ       | 71.8mm       | eco solvent/UV ink
SPT225-35PL     | 35PL      | 225        | 8KHZ             | 35.8mm       | solvent ink
SPT225-12PL     | 12PL      | 225        | 12KHZ            | 35.8mm       | eco solvent/UV ink
