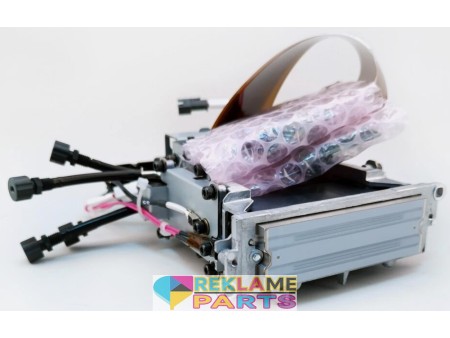

Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
zoom_in
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)
  • Mimaki JFX200-2513 Printhead MP-M022625 GEN5 Maintenance Assy (incl. Heater)

Orginal Ricoh JFX200 MP-M022625 GEN5 Printhead Maintenance Assy (incl. Heater)

$1,146.00

JFX200-2513 Head adapter Assy MP-M022625 Made in Japan
Orginal Ricoh JFX200 MP-M022625 GEN5 Printhead Maintenance Assy (incl. Heater)

Quantity

JFX200-2513 Head adapter Assy MP-M022625 Made in Japan
Orginal Ricoh JFX200 MP-M022625 GEN5 Printhead Maintenance Assy (incl. Heater)


This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028). We recommend to change the head cables when installing a new printhead.


Availability: In stock
Description: Brand New
SKU: M022625
Manufacturer part number: M022625
Manufacturer: Mimaki
HTS Code: [EU] 84439990
Country of origin : Japan
This printhead carries a manufacturer warranty.
Package：Original Manufacture Package


Specifications
☑️ Dimensions: 89 x 25 x 69 mm (excluding cables)
☑️ Head materials: SST, Nickel alloy and Epoxy Adhesive
☑️ Nozzle plate surface: Coated SST
☑️ Number of nozzles: 4 x 320 nozzles
☑️ Nozzle spacing: 0.1693 mm
☑️ Nozzle density: up to 600 npi
☑️ Piezo yype: D33 Stacked PZT
☑️ Temperature control: Integrated Heater and Thermistor
☑️ Operator temperature range: Up to 80° C
☑️ Native drop volume: 7 pl
☑️ Drop volume range: 7 - 35 pl
☑️ Drop velocity: 7 m/s
☑️ Jetting frequency: Up to 60 kHZ
☑️ Life: 100 billion actuations per nozzl


Printer compatibility :
✅ Mimaki JFX200-2513

MP-M022625
