Original Toshiba CF1 printhead

$795.00

Availability: In stock
SKU: PPHTOCF1
Manufacturer part number: CF1
Manufacturer: Toshiba
HTS Code: [EU] 84439990
Country of origin : Japan
Package：Original Manufacture Package
Warranty : This printhead carries a manufacturer warranty.

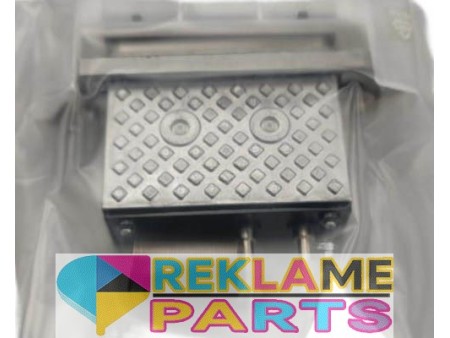

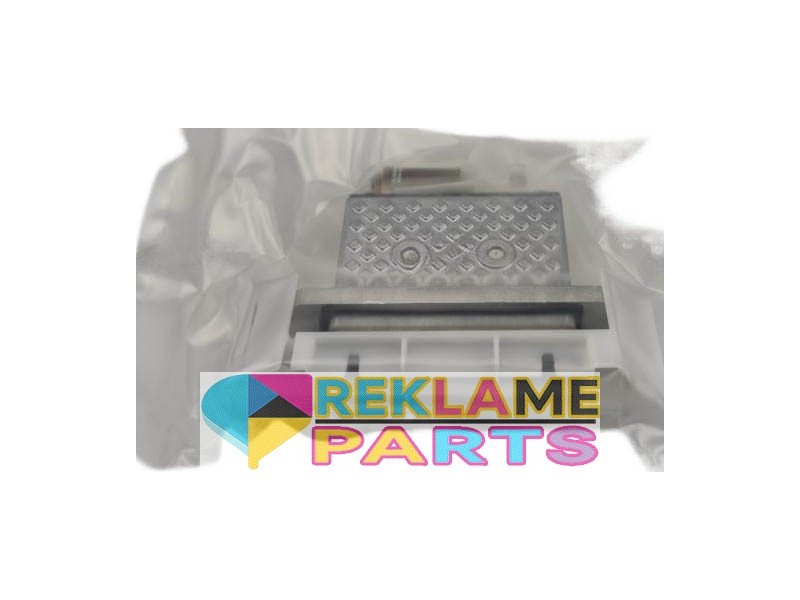

This Toshiba CF1 printhead is suitable for a series of UV printers. This is the original Toshiba printhead (part number CF1).

Quantity

Specifications
☑️Print Method: Drop on demand piezo
☑️Print Width: 53.7mm
☑️Number of channels: 636
☑️Resolution: 300dpi / 84.5 micron
☑️Grayscale level: 8-levels (0.1 - 7 dpd)
☑️Drop Volume: 64 - 90pl
☑️Maximum dot frequency: 4.8kHz (at max dpd)
☑️Linear speed: 24m/min (at max dpd)
☑️Driving voltage: 14 - 31V
☑️Drop velocity: 7 - 9 (m/s)
☑️Weight: 161g (185g with positionning plate)
☑️Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
☑️Jettable fluids: UV-curing, oil-based

We recommend to change the head cables when installing a new printhead.
