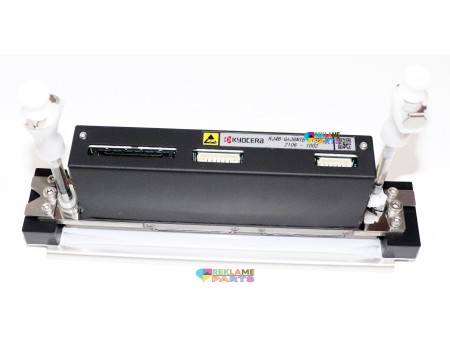

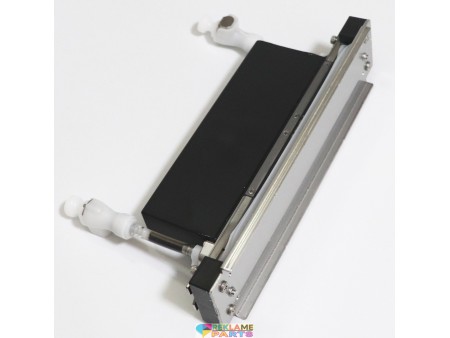

Kyocera KJ4B-QA06NTB-AN6V-4B Print Head

Kyocera KJ4B-QA06NTB-AN6V-4B Print Head

The Kyocera KJ4B-QA06NTB-AN6V-4B is a high-resolution industrial inkjet printhead designed for aqueous inks, offering 600 dpi native resolution, 30 kHz drive frequency, and an effective print width of 108 mm. It is optimized for high-speed, precision printing in packaging, textiles, and commercial graphics.


Specifications :

Model    KJ4B-QA06NTB-AN6V-4B
Ink Type    Aqueous (water-based)
Native Resolution    600 × 600 dpi
Maximum Drive Frequency    30 kHz
Print Speed    Up to 75 m/min
Drop Volume    Approx. 6 pL
Nozzle Count    2,656 nozzles
Nozzle Pitch    0.042 mm
Effective Print Width    ~108 mm
Dimensions    200 × 25 × 59.3 mm
Dry Weight    420 g
Recommended Ink Viscosity    3.0 – 5.0 mPa·s (adjustable with internal heater)
Applications    Packaging, labels, textiles, commercial graphics, industrial printing
Model Variant    AN6V-4B variant is tuned for specific aqueous ink formulations and optimized durability in continuous production environments
Country of Origin    Japan


Key Advantages
High Precision: 600 dpi ensures sharp text and fine image detail.
Durability: Kyocera’s ceramic nozzle technology provides long service life.
Speed & Efficiency: 30 kHz firing frequency supports high-speed production.
Compact Design: Slim profile (200 × 25 × 59.3 mm) allows easy integration.



Usage & Compatibility:
Packaging & Labels: High-speed printing on coated paper and film.
Textiles: Digital fabric printing with water-based inks.
Commercial Graphics: Posters, signage, and industrial applications requiring precision.
