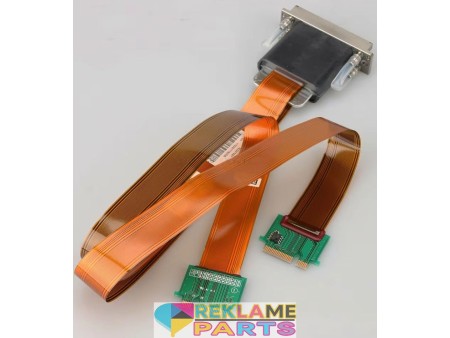

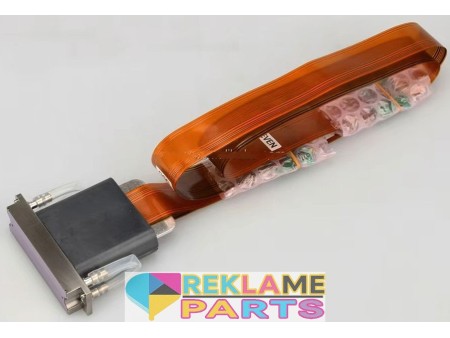

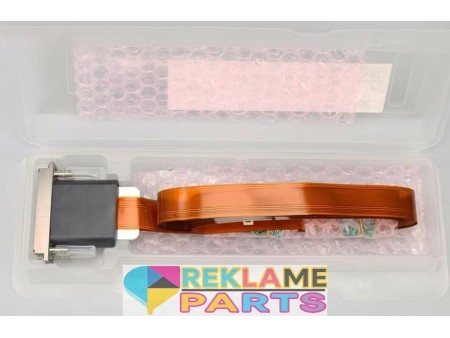

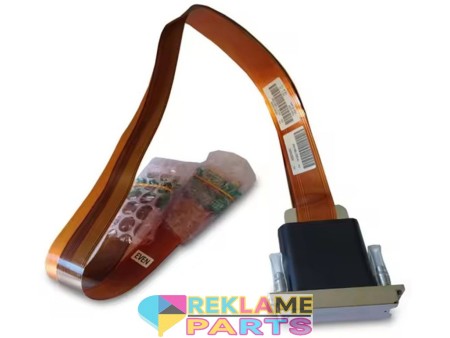

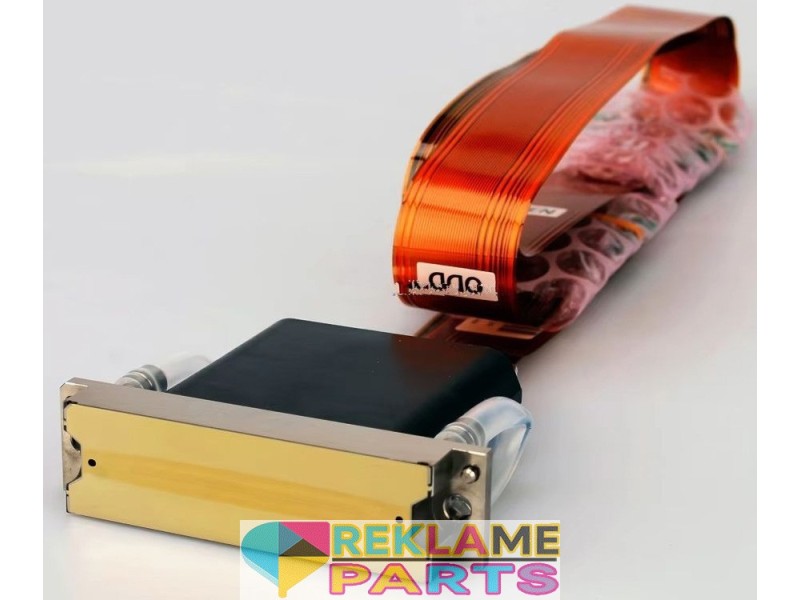

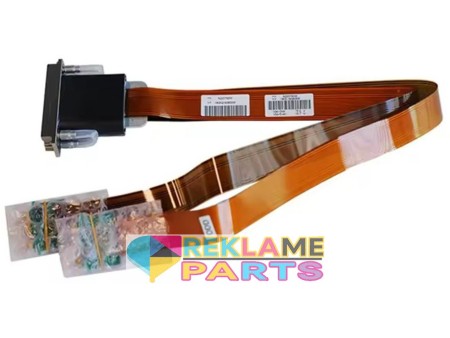

SWJ-320 GEN5 Assy Packaging - M022650
This SWJ-320 GEN5 Assy Packaging - M022650 is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M022650 replacing M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.
Availability: In stock
Description: Brand New
SKU: M012639
Manufacturer part number: M022650
Manufacturer: Mimaki
HTS Code: [EU] 84439990
Country of origin : Japan
This printhead carries a manufacturer warranty.
Package：Original Manufacture Package
Printer compatibility :
✅ MTEX 5032 HS
✅ Mimaki SWJ-320 S4
✅ Mimaki SWJ-320 S2
Specifications
☑️ Dimensions: 89 x 25 x 69 mm (excluding cables)
☑️ Head materials: SST, Nickel alloy and Epoxy Adhesive
☑️ Nozzle plate surface: Coated SST
☑️ Number of nozzles: 4 x 320 nozzles
☑️ Nozzle spacing: 0.1693 mm
☑️ Nozzle density: up to 600 npi
☑️ Piezo yype: D33 Stacked PZT
☑️ Temperature control: Integrated Heater and Thermistor
☑️ Operator temperature range: Up to 80° C
☑️ Native drop volume: 7 pl
☑️ Drop volume range: 7 - 35 pl
☑️ Drop velocity: 7 m/s
☑️ Jetting frequency: Up to 60 kHZ
☑️ Life: 100 billion actuations per nozzle
