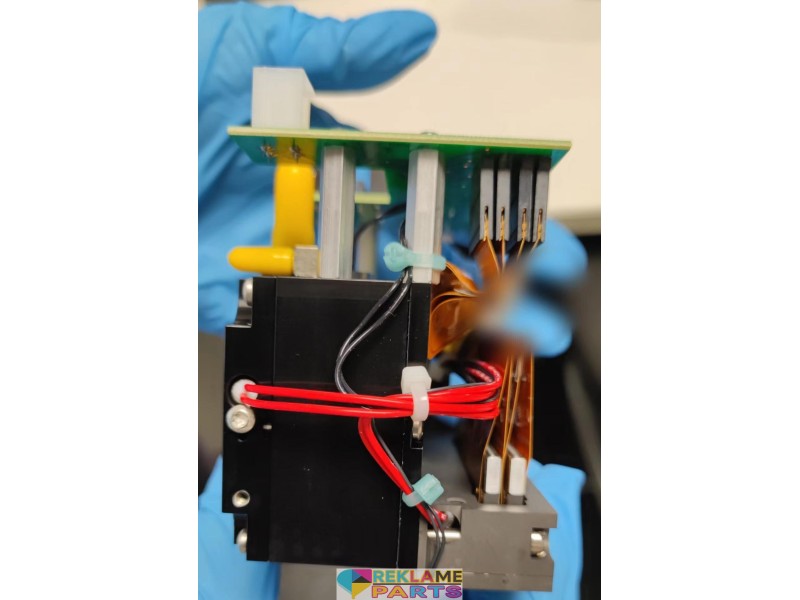

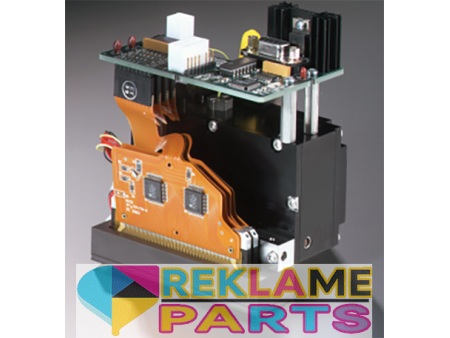

Fujifilm Original Galaxy PH 256/50 AAA Printhead
zoom_in
  • On sale!
  • Fujifilm Original Galaxy PH 256/50 AAA Printhead
  • Fujifilm Original Galaxy PH 256/50 AAA Printhead

NEW Fujifilm Original Galaxy PH 256/50 AAA Printhead

$1,665.00

NEW Fujifilm Original Galaxy PH 256/50 AAA Printhead
Fujifilm Spectra Galaxy PH 256/50 AAA

The Galaxy Printhead 256/50 AAA is a50 pL ink jet printhead offering complete fluid support and signal processing capabilities for a wide range of jetting fluids at resolutions up to 600 dpi.
SKU: PPHSPGAPH50
Manufacturer: Fujifilm
HTS Code: [EU] 84439990
The head comes with manufacturer warranty
Country of origin : Japan

Quantity

NEW Fujifilm Original Galaxy PH 256/50 AAA Printhead
Fujifilm Spectra Galaxy PH 256/50 AAA

The Galaxy Printhead 256/50 AAA is a50 pL ink jet printhead offering complete fluid support and signal processing capabilities for a wide range of jetting fluids at resolutions up to 600 dpi.
SKU: PPHSPGAPH50
Manufacturer: Fujifilm
HTS Code: [EU] 84439990
The head comes with manufacturer warranty
Country of origin : Japan


The Galaxy Printhead 256/50 AAA is a50 pL ink jet printhead offering complete fluid support and signal processing capabilities for a wide range of jetting fluids at resolutions up to 600 dpi.

Within the printhead’s jetting assembly, four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line at a 0.010 inch distance between nozzles. The jetting assembly contains serial-to-parallel converters for selecting which jets to fire.

Features
50 picoliter calibrated drop size
Resolutions up to 600 dpi
256 individually addressable, inline nozzles
Orientation independent
Supports solvent, UV-curable and aqueous based ink
Head Interface Board for serial data transmission
Ink reservoir, deaeration system, and fluid filter
Ink level sensor
Permits high viscosity jetting fluids
Temperature control

PH 256/50 AAA
23 Items

Specific References

MPN
PH 256 50 AAA
